Hi All,
I have an XIR3 environment, and desktopi, designer, qaaws, xcelsius, cmc, cms, infoview works flawless.
My Application server is Tomcat 5.5.27. And my db server is MS SQL 2005. Operating system is Windows XP professional.
For some unknown reason, BOE XIR3 Webi won’t run.
I tried debugging the problem myself:
first checked the files under the tomcat. Surprisingly I didn’t see any Webi folders under the tomcat 5.5/webapps folder, however OpenDocument folders are there.
I did stop the tomcat, cleared everything under the /logs folder.
I did clear application and system events in Event viewer of XP.
I did clear /logging folder under BOE 12.0
reproduced the problem
----- output from catalina xxx .log file —
Dec 29, 2008 9:02:21 AM org.apache.catalina.core.AprLifecycleListener lifecycleEvent
INFO: The Apache Tomcat Native library which allows optimal performance in production environments was not found on the java.library.path: C:\Program Files\Apache Software Foundation\Tomcat 5.5\bin;.;C:\WINDOWS\Sun\Java\bin;C:\WINDOWS\system32;C:\WINDOWS;C:\progra~1\oracle\ora90\bin;C:\progra~1\oracle\ora90\Apache\Perl\5.00503\bin\mswin32-x86;C:\Program Files\Oracle\jre\1.1.8\bin;C:\Program Files\Business Objects\common\3.5\bin\NOTES;C:\Program Files\Business Objects\common\3.5\bin\NOTES\DATA;C:\WINDOWS\system32;C:\WINDOWS;C:\WINDOWS\System32\Wbem;C:\Program Files\Diskeeper Corporation\Diskeeper;C:\Program Files\ThinkPad\ConnectUtilities;C:\Program Files\Common Files\Lenovo;C:\Program Files\Lenovo\Client Security Solution;C:\Program Files\Microsoft SQL Server\80\Tools\Binn;C:\Program Files\Microsoft SQL Server\90\DTS\Binn;C:\Program Files\Microsoft SQL Server\90\Tools\binn;C:\Program Files\Microsoft SQL Server\90\Tools\Binn\VSShell\Common7\IDE;C:\Program Files\Microsoft Visual Studio 8\Common7\IDE\PrivateAssemblies;C:\Program Files\Common Files\Autodesk Shared
Dec 29, 2008 9:02:22 AM org.apache.coyote.http11.Http11BaseProtocol init
INFO: Initializing Coyote HTTP/1.1 on http-8080
Dec 29, 2008 9:02:22 AM org.apache.catalina.startup.Catalina load
INFO: Initialization processed in 2984 ms
Dec 29, 2008 9:02:23 AM org.apache.catalina.core.StandardService start
INFO: Starting service Catalina
Dec 29, 2008 9:02:23 AM org.apache.catalina.core.StandardEngine start
INFO: Starting Servlet Engine: Apache Tomcat/5.5.27
Dec 29, 2008 9:02:23 AM org.apache.catalina.core.StandardHost start
INFO: XML validation disabled
Dec 29, 2008 9:02:33 AM org.apache.catalina.core.StandardContext start
SEVERE: Error listenerStart
Dec 29, 2008 9:02:33 AM org.apache.catalina.core.StandardContext start
SEVERE: Context [/AnalyticalReporting] startup failed due to previous errors
Dec 29, 2008 9:03:52 AM org.apache.coyote.http11.Http11BaseProtocol start
INFO: Starting Coyote HTTP/1.1 on http-8080
Dec 29, 2008 9:03:53 AM org.apache.jk.common.ChannelSocket init
INFO: JK: ajp13 listening on /0.0.0.0:8009
Dec 29, 2008 9:03:53 AM org.apache.jk.server.JkMain start
INFO: Jk running ID=0 time=0/63 config=null
Dec 29, 2008 9:03:53 AM org.apache.catalina.storeconfig.StoreLoader load
INFO: Find registry server-registry.xml at classpath resource
Dec 29, 2008 9:03:53 AM org.apache.catalina.startup.Catalina start
INFO: Server startup in 90250 ms
so far couldn’t resolve the problem…

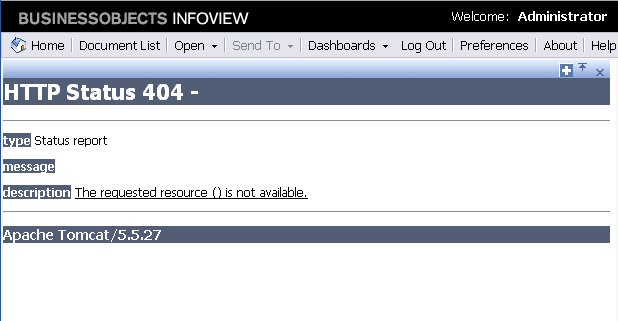

although desktopi works fine when I run it from under the program folder, shortcut names, it wont work under infoview/document list/new desktop intelligence document and I get the same error as webi : “http status 404”
I really don’t prefer to uninstall everything and install them from scratch at the moment.

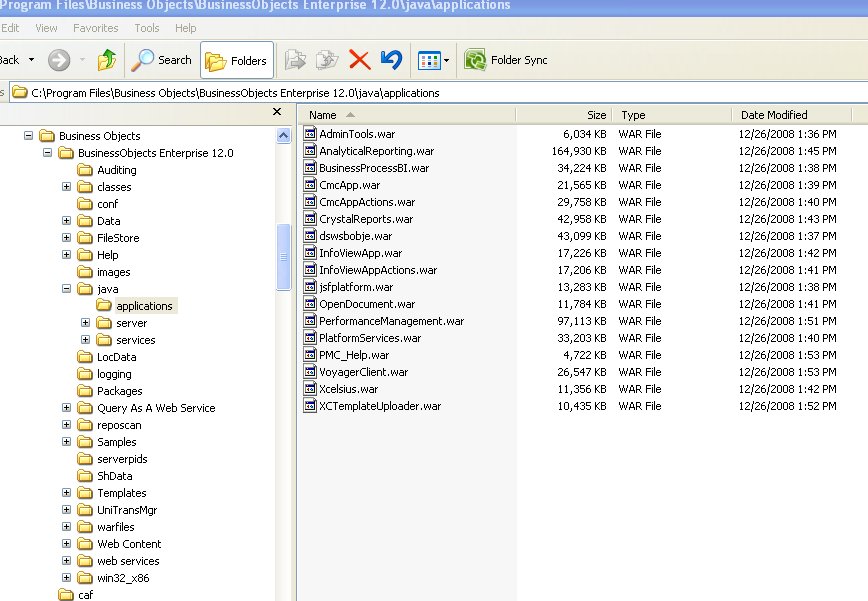

I decided to deploy only webi .war files into Tomcat. But i believe by XIR3 things are changed, there is only one .war file in all BOE XiR3 installation suite. After the BOEXIR3 installation under the BOE/java/applications folder there are some .war files. But dont quite sure which one/s would correct the problem either?
What could be your solution to reinstall/deploy webi related files/services into Tomcat application server in R3 context?

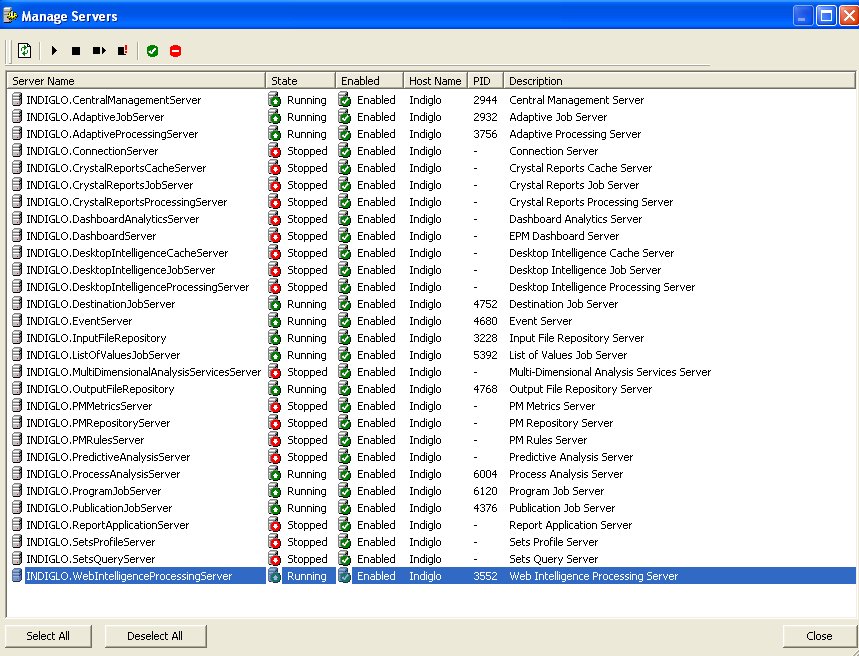

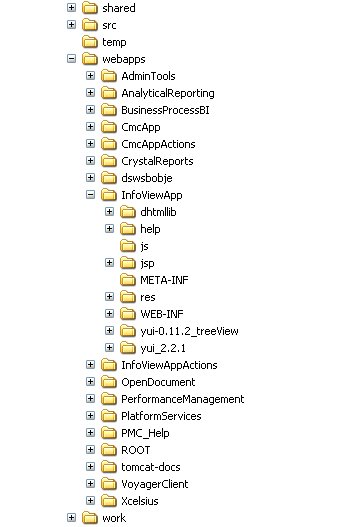

attached is the image of BOE R3 servers running at the background & Tomcat webapps folder
thanks
Mr.H
